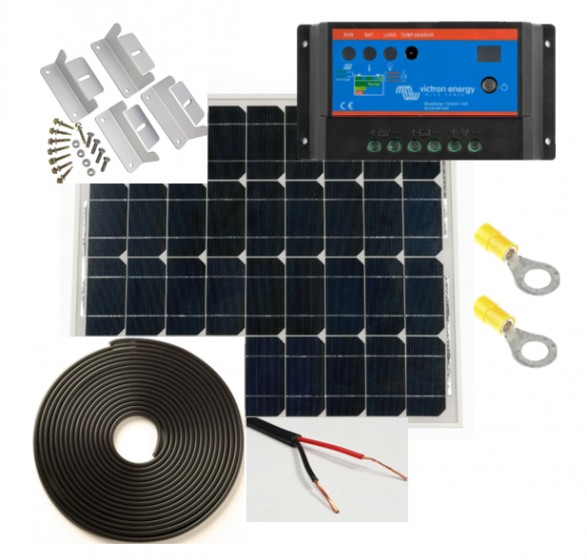

40W Victron monocrystalline framed solar panel kits for DIY solar power. These 12V charging kits are suitable for permanent installation, and provide solar power for many different professional, domestic and leisure applications, including motorhomes, boats, and outbuildings. Kits include a monocrystalline solar panel, charge controller, cables and battery connectors.

Solar Panel Details:

• A sturdy aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting or bespoke systems. Installation holes are provided

• Panel rated 40W, 2.19A @ 18.3V

• Dimensions: 668 x 425 x 25mm, 3.1kg

• 25 year panel output and performance warranty

• Full instructions included

Solar Mounting Brackets:

• Set of 4 x Z brackets are included to mount the panel to any flat surface using self tapping screws.
• The brackets are fixed to the panels using the provided mounting holes and are bolted together.

Charge Controller Details:

• Victron BlueSolar PWM-Light 5A (12/24V)
• Three stage battery charging (bulk, absorption, float), not programmable
• Load output with low battery voltage disconnect function

• Screw terminals for ease of installation
• Status LED indicates battery charging and battery health
• Reverse leakage protection prevents power loss at night
• Dimensions (mm): 133 x 70 x 33.5
• Weight: 0.15kg

Cable Details:

• 3m of dual core DC UV stable cables fitted to panel

• Additional length of 1 meter for connection between controller and battery

• Pack of ring crimps and instructions
