Our 115W Select Solar Power Station is a big step forward to achieving energy self-sufficiency in a garage, holiday cottage, business or anywhere that would be affected by power cuts and the cost installing mains cable is very high. Within the kit you have all parts that you may require to start producing you own power within an hour of installation. It is very simple to construct and comes with full instructions.

The solar panel must be located outside and an aluminium stand is supplied to stand the panel firmly on the ground or a flat roof (the multi position rack allows you to achieve the optimum angle in all seasons). The 5m of extension cable runs to the battery and other equipment, first into the charge controller, then into the battery and finally through the inverter. You are essentially provided a mains wall socket to do with as you please. To run 12V appliances you can either run straight off the battery or purchase an additional 12V Socket.

The 115W kit provides on average 460 watt hours per day and is suited for garages, workshops, stables, garden sheds, and beach huts. It can normally power appliances such as lighting, power tools, battery charger, car vac, alarm systems etc for around 2-4 hours per day. If you wish to power larger appliances or run these for longer or during winter, please consider a larger station.

To get a better understanding of appliances that you can use with our powerstations, consider using our appliance wattage calculator (Excel speadsheet) for the smaller kits:

2_0_appliance-wattage-calculator-v2.3.xlsm

Features:

• Gives you the tools to achieve energy self sufficiency
• Easy to install kit without the need for any qualified persons
• Simple to disassemble and relocate
• Can provide power in areas where mains cannot reach
• Can be seen as an investment due to ever increasing energy prices

Contents:

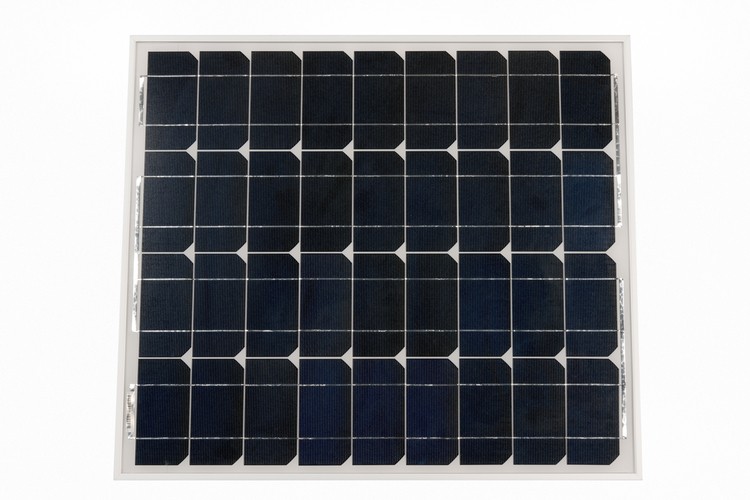

• Victron BlueSolar 115W - 12V Mono Panel

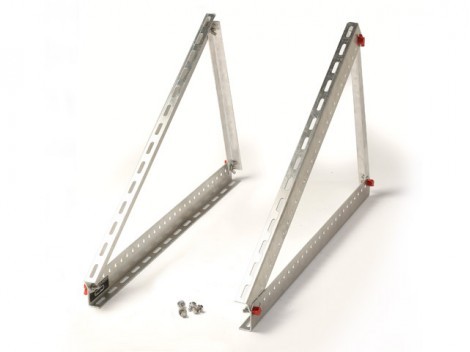

• Multi Position Aluminium Rack (Please call if you require an alternative mounting system)

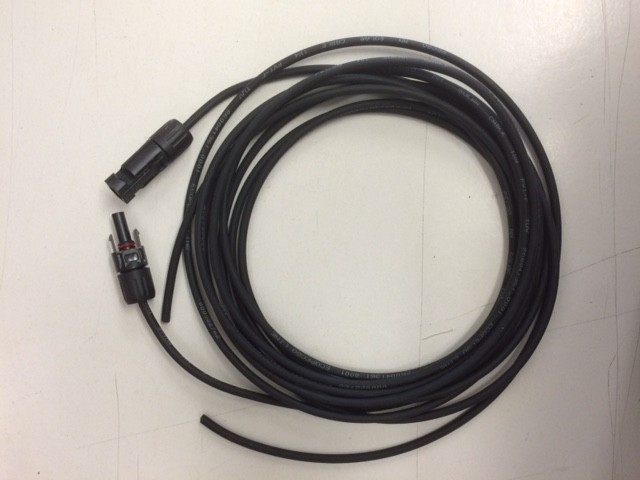

• Multi Contact 5m Extension Cable Pair with MC4 Connectors
• Victron SmartSolar MPPT 75/15 (12/24V)
• 2 x 1m Single Core 4mm² Cable with M8 Crimps

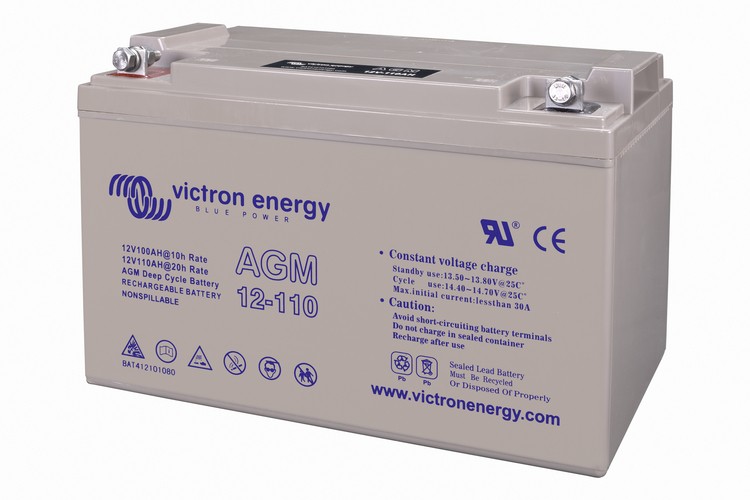

• Victron 12V/110Ah AGM Deep Cycle Battery
• 1m Single Core 16mm² Battery Cable with M8 Crimps
• 2 x 0.5m Single Core 16mm² Battery Cable with M8/M10 Crimps

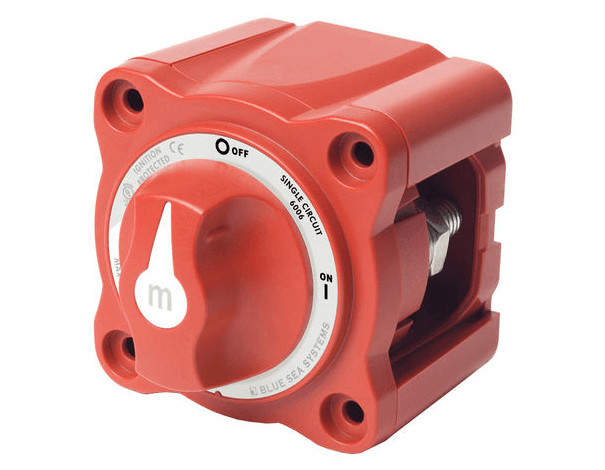

• 300A Battery isolator switch, 900A for 30 secs, 48 Volt, M10

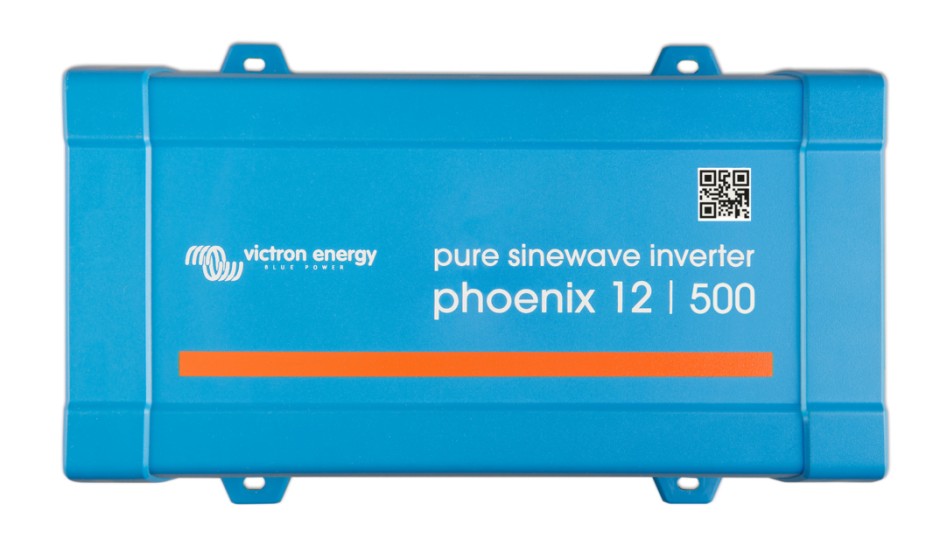

• Victron Phoenix 500VA - 12v DC Inverter with 240v AC UK Fixed Socket Outlet (Please call if you require a larger inverter)

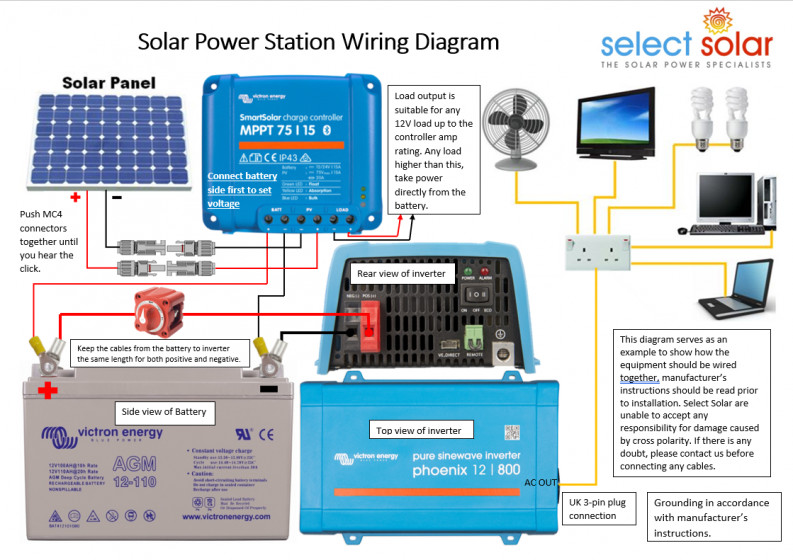

• Wiring Diagram
