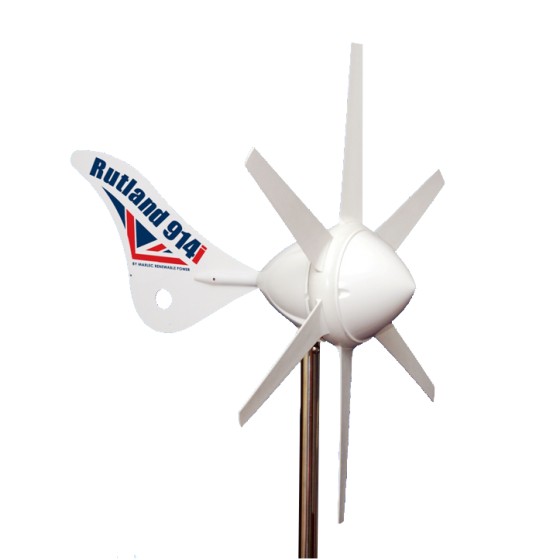

Rutland 914i Wind Turbine 12/24V
Rutland 914iClick to enlarge product image
| Name | Code | Power (W) | Dim. (L x W mm) | Price | UK Del. | ||
|---|---|---|---|---|---|---|---|
| Rutland 914i Single Battery Wind Turbine - 12V | 06006ML09 | 262.00 | 370 x 300 | £669.59 | £25.00 | Full Details | |
| Rutland 914i Dual Battery Wind Turbine - 24V | 06006ML10 | 262.00 | 370 x 300 | £669.59 | £25.00 | Full Details |
The Rutland 914i punches well above its size for power, rivalling the claimed outputs of larger turbines due to it’s built-in MPPT technology. This continuously matches the turbine speed and generator to their optimum performance to deliver more ampere hours into your battery, and a by-product of this optimised efficiency is a virtually silent wind turbine!
| Cut in Windspeed | 3 m/s | |
| Output Voltages Available (Nominal) | 12V | 24V |
| Power / Current Ratings: | ||
| 5m/s 10knots | 24W(1.7A) | 24W(0.8) |
| 11m/s 21knots | 143W(10.3A) | 143W(5.1A) |
| 15m/s 29knots | 262W(18.9A) | 262W(9.4A) |
| Packed Weight & Dimensions | 13.1kg 370 x 300 x 450mm | |
| Generator Type | Low friction 3 phase, brushless |
| Yaw Rotation | Slipring for 360° free rotation. Low brush wear. |
| Governing Devices | None |
| Turbine Diameter | 910 mm |
| Turning Radius | 557 mm |
| Net Weight | 11.58 kg |
Related Documents
- Rutland-Marine-Brochure-A4 Copy
- Rutland-914i-Manual-C Copy
