Rutland 1200 Windcharger 12/24V

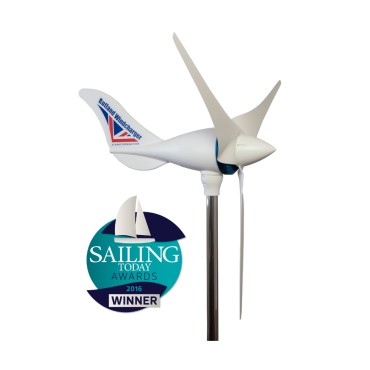

Rutland 1200 Windcharger 12VClick to enlarge product image
| Name | Code | Power (W) | Dim. (L x W mm) | Price | UK Del. | ||
|---|---|---|---|---|---|---|---|
| Rutland 1200 Single Battery Windcharger 12V | 06006ML13 | 483.00 | 900 x 390 | £1193.99 | £25.00 | Full Details | |
| Rutland 1200 Dual Battery Windcharger 24V | 06006ML14 | 483.00 | 900 x 390 | £1193.99 | £25.00 | Full Details |
Experience the powerful but quiet operation of the new Tri-namic profile blade. Our latest turbine, the Rutland 1200, is the ideal companion for generating energy on board. In high winds the Rutland 1200 blade achieves high rotation levels thus delivering more power than any other turbine of its diameter range at 3, 6, 12 & 15m/s (6, 12, 23 & 29Knots).
| Cut in Windspeed | 2.5 m/s | |
| Output Voltages Available (Nominal) | 12V | 24V |
| Power / Current Ratings: | ||
| 5m/s 10knots | 40W (2.9A) | 40W (1.45A) |
| 11m/s 21knots | 290W (21.3) | 290W (10.7A) |
| 15m/s 29knots | 483W (35.5A) | 483W (17.76A) |
| Packed Weight & Dimensions | 900 x 390 x 185mm 11.25kg | |
| Generator Type | Low friction 3 phase rare earth magnets, brushless. |
| Yaw Rotation | Slipring for 360° free rotation. Low brush wear. |
| Governing Devices | Electronic stalling |
| Turbine Diameter | 1220mm |
| Turning Radius | 620 mm |
| Net Weight | 7.8 kg 17.2lbs |
