Portable Solar Charger - 7w

Products are widely used, suitable for travel, outdoor cycling, camping, etc. Various inconvenient to recharge using digital products, safe and efficient product features, design convenient and easy to carry, for your outdoor adventure activities provide a solution.

Product is suitable for mobile phones, MP3, MP4, digital camera, PSP, GPS, iphone, Blackberry, mobile DVD, bluetooth headset, IPOD, bluetooth speakers, hand ring, mini toys and other digital products to charge.



1. The independent design of power management system, making the circuit board the conversion efficiency of > 90%.

2. Support the weak light of charging emergency situation.

3. Have the system automatically detects the light intensity change, make in the cloudy day, cloud cover, and the leaves keep out the sun from low light to bright light for charging the mobile phone to realize automatic restart function.

4. Power supply system with current overload protection, power management system design current of 2.5 A, when the current is greater than this parameter, power management system automatically shut down output, thus protecting equipment for mobile phone.

5. The folding package power management systems with automatic current distribution function, make the battery under different power allows current distribution well, so as to achieve the protection of the battery.

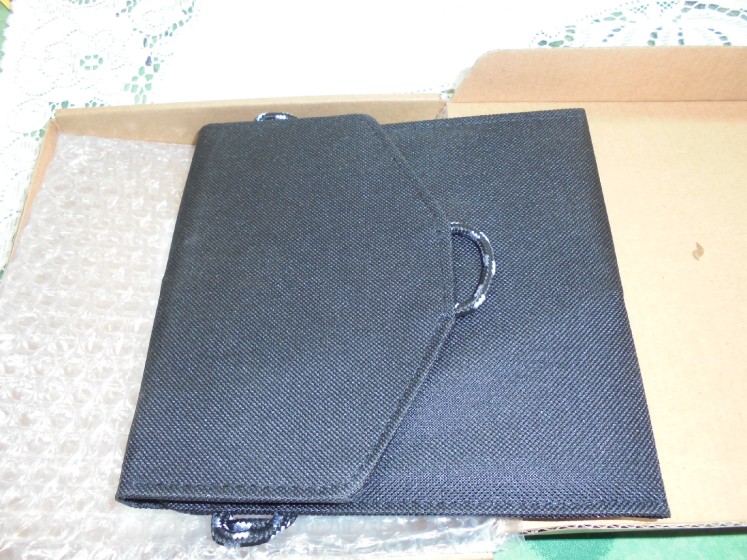

 6. The folding package small folding design, can be easily placed in a backpack, handbag.

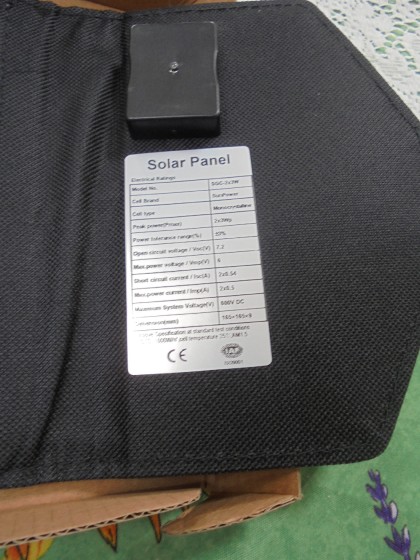

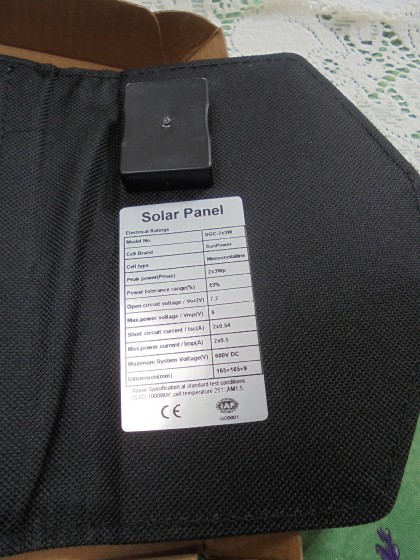

Cell brand:  Sunpower

Type of Connector: USB

Folding size:

Length x Width x Thickness

160mm x 160mm x 10mm

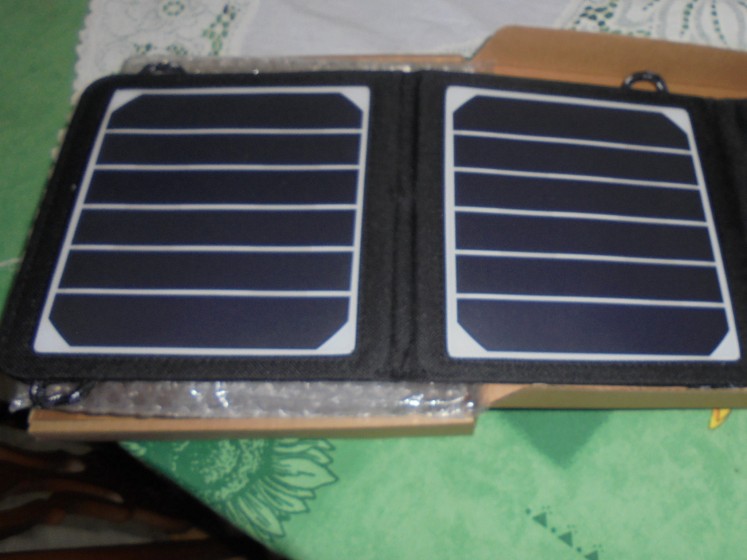

Open size:

Length x Width x Thickness

460mm x 165mm x 4mm

Weight: 180 g

Peak power(WP): 2 x 3.5w

Current at Pmax(Imp): 1.9      Voltage at Pmax(Vmp): 6

Short circuit current(Isc): 2     Open circuit voltage(Voc): 6.6

Waterproof:  IP 65

Power tolerance:  ±3%

Operating Temperature:  -40͠ to + 85͠ Conversion Efficiency: 22.60%

Temperature Coefficient of Pmax:           -0.38%/͠

Temperature Coefficient of voc:               -0.27%/͠

Temperature Coefficient of ISC: 0.05%/͠        Nominal Operating Cell Temperature: 45+/-2͠

Data under standard testing conditions (STC) 1000W/M²; 1.5AM
