Product Categories
Candian Solar Panels
CS3L-365MS-MC4
| Name | Code | Power (W) | Dim. (L x W mm) | Price | UK Del. | ||
|---|---|---|---|---|---|---|---|
| 360W Super High Power Mono Perc HiKu with MC4-EVO2 | 06009CJ01 | 360.00 | 1765 x 1048 | £211.74 | £99.00 | Full Details | |
| 370W Super High Power Mono Percium HiKu with MC4-EVO2 | 06009CJ02 | 370.00 | 1765 x 1048 | £193.79 | £99.00 | Full Details | |
| 395W High Power Mono Perc HiKu6 with MC4 | 06009CJ03 | 395.00 | 1722 x 1134 | £255.68 | £99.00 | Full Details | |
| 405W High Power Canadian Mono Perc HiKuwith MC4-EVO2 | 06009CJ04 | 405.00 | 1722 x 1134 | £237.74 | £99.00 | Full Details | |
| 455W Super High Power Mono Perc HiKu with MC4-EVO2 | 06009CJ05 | 455.00 | 2108 x 1048 | £286.21 | £99.00 | Full Details | |
| 400W MONO CS6R-MS B/B ED | 06009ED01 | 400.00 | 1722 x 1134 | £280.22 | £25.00 | Full Details |

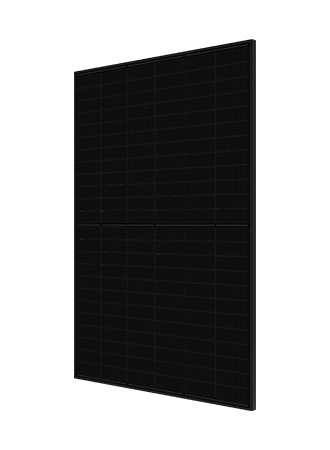

Canadian Solar High Density Mono PERC Module
Supplied with 1350mm output cables and MC4 connectors
25 years linear power output warranty
With innovative module technology and unique IP-granted (intellectual property) design features the HiDM high density shingled solar module, can offer high power modules up to 365 W with enhanced aesthetics appearance. Through maximizing the light absorption area and removing the loss of ribbon resistance, the module efficiency can reach up to 19.86 %.
More RELIABLE (thanks to shingle high density cell technology):
Lower internal current, lower hot spot temperature
Cell crack risk limited to smaller area of the cell
Weight: 21.1 kg
Related Documents
- CSI-Datasheet-HiKu CS3L-MS Super High Power v5.586 EN 350-370
